Personal monitoring tracker

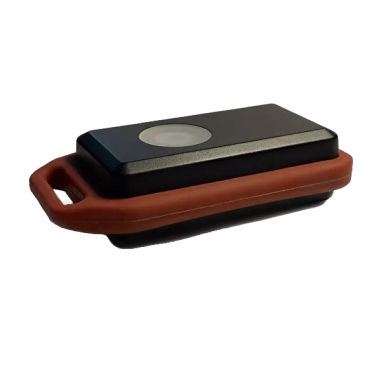

IOTEKLY Personal Tracker-LoRaWAN
Tracker for tracking the movement of personnel, both in the open area
and indoors
CONTACTS US
Personal monitoring tracker
IOTEKLY Personal Tracker-LoRaWAN
Tracker for tracking the movement of personnel, both in the open area
and indoors
CONTACTS US
  • GPS/GLONASS
    Location determination using GPS/GLONASS. You always know where your employee is, which route is moving
  • iBeacon/Wi-Fi
    Determining the location of an employee indoors using an iBeacon/Wi-Fi scanner
  • LoRaWAN
    The received data is transmitted via LoRaWAN
Principle of operation
IOTEKLY Personal Tracker-LW receives employee location data using GLONASS, if the employee is in an open area, also using the iBeacon Bluetooth tag scanner and the scanner of surrounding Wi-Fi networks if the employee is indoors.
The received data is transmitted to the base station via LoRaWAN
And then to the analytical cloud platform for further monitoring
Functionality
Personal monitoring tracker IOTEKLY Personal Tracker-LW - a ready-made solution for your business
  • Monitoring compliance with the work schedule, visits to specified objects and time control
  • Indoor location detection using an iBeacon/Wi-Fi scanner, as well as in an open area using GPS/GLONASS
  • View the history of employee movements on the map or in reports
  • Detection of shock, turn and collisions in case of an emergency
  • Calculation of the motion activity of the monitored employee
  • Configuration using the Android/IOS mobile app
Weight
Enclosure dimensions
Operational temperature range
Operational humidity range
Ingress protection rating
30 g
55x35x18 mm
-40…+85 °С
0-100%
IP-65
Main function
Configuration interface
With Android/IOS mobile application
Configuration
Antenna type
Capacity
Number of channels
Cold start time
Hot start time
Built-in ceramic
yes
72
40 s
2 s
GNSS geolocation
Operational voltage range
Capacity
Battery model
Battery lifetime
3.8В
300 MHz
LiPo
Up to 1 week, depending on the configuration and settings
Battery
Geolocation method
Scanning period/duration
Scanning principle
Near Wi-Fi access points BSSID scan
Configurable
Active
Wi-Fi geolocation
Geolocation method
Scanning period/duration
Bluetooth beacon format
Bluetooth beacon filtration
Bluetooth low energy
Configurable
iBeacon
Yes
Bluetooth geolocation
Motion activity tracking
Shock detection
Power saving mode if no movement
Yes, with configurable interval and sentivity
Yes, with configurable sensitivity
Yes, with configurable no movement duration
Additional features
Communication standart
Supported LoRaWAN regions
Radio frequency range
Maximum transmit power
Sensitivity
Network activation method
LoRaWAN 1.0.3 class A
RU864/EU868
864-1000 MHz
16 dBm
-129 dBm
OTAA
Data transmission
Advantages
of using a personnel monitoring tracker
  • Route control
    The device records the location and routes of personnel. This helps to analyze working hours and monitor work efficiency.
  • Optimization of work
    The tracker will help optimize staff productivity by ensuring that the right employees are in the right place at the right time.
  • Power supply
    The device has a rechargeable Li-ion battery. To charge the device, it is enough to connect the device to an outlet using a charging cable with a USB Type-C connector and a USB power adapter.
  • Dynamic reports
    Get detailed reports on staff routes with the total time of presence at the workplace, in each work area and the number of visits per period.
  • LoRaWAN data transmission
    Energy-efficient data transmission LoRaWAN technology allows you to provide up to 2 years of autonomous operation of the device.
  • SOS button
    The alarm button provides an opportunity to quickly call for help in case of an emergency.
